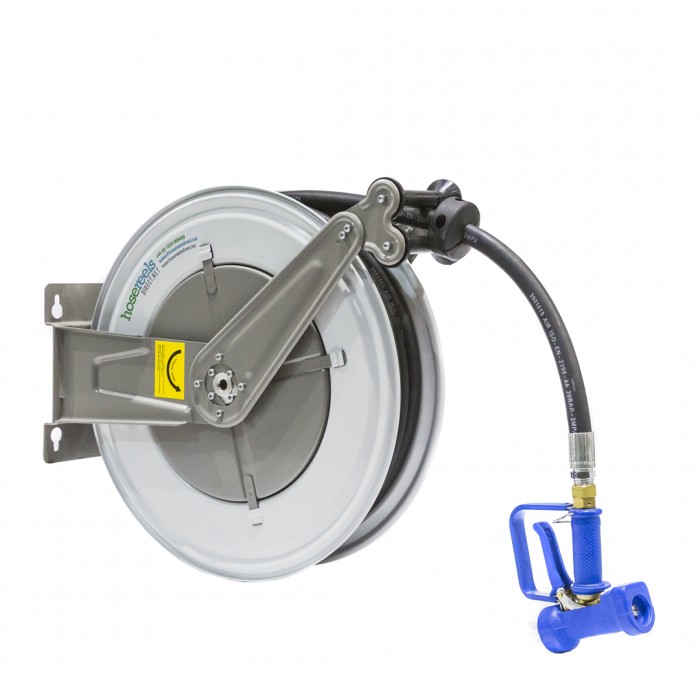

ME-070-1402-425 Air & Water Hose Reel with 25m x 12mm I.D. hose Complete Package

    PDF generate
  • Series: F550 Series
  • Model: ME-070-1402-425-PKG


In order to maintain the best possible pricing and accurate lead times we offer all of our customers tailored made quotations.

Once we received your request we aim to get back to you asap

The general purpose F550 Series heavy duty spring retractable hose reel rewinds automatically keeping hose off the floor and stopping potential damage to hose and reducing tripping hazards. It is ideal for increasing safety and efficiency in workshops, garages and organising air lines.

Increase safety and convenience


Why purchase this reel?

  • Manufactured in Europe - Solid steel frame is designed and built to last and each component is individually power coated with an extra finish for maximum durability.
  • Designed for a broad range of low pressure gas and fluid applications.
  • Heavy duty "dual pedestal" design reduces wear in the axel and potential damage.
  • The reel frame is engineered with ridges to minimise twisting and distortion even under heavy use.
  • Enclosed drive spring - On some reels moisture can creep in and cause problems with the internal drive spring. All the ME Series cassettes are sealed to stop this problem

"This is backed by a 2 year manufacturer's limited warranty.”


Recommended Applications

  • General purpose low pressure air & water applications
  • Factories & garages where air lines are used.
  • Workshops using air tools - you wont have to start a job by untangling hose again.


Popular Mounting Positions

This hose reel can mounted on the wall, floor or ceiling




Extras

This reel is sold complete with high quality synthetic black rubber hose and a solid rubber bumper stop.

Don’t start each job untangling hose, get the job done.

Type
Description Complete Package for industrial washdown
Hose
I.D. (Inside Diameter) 12mm (1/2")
Length (m) 25 m
Pressure (BAR) 20
Type of Hose General purpose black rubber fabric braided hose complete with brass BSP fittings
Supplied with Hose Yes
No. of Hoses Single Hose
Application
Media Water for Washdown
Construction Steel
Weight 24kg (inc. water gun)
Dimensions (mm) See Documents Tab
Max. Working Temp. 65°C
Swivel
Seals Viton
Material Nickel Plated Brass
Connection
Inlet m1/2" BSPP
Outlet m1/2" BSPP
