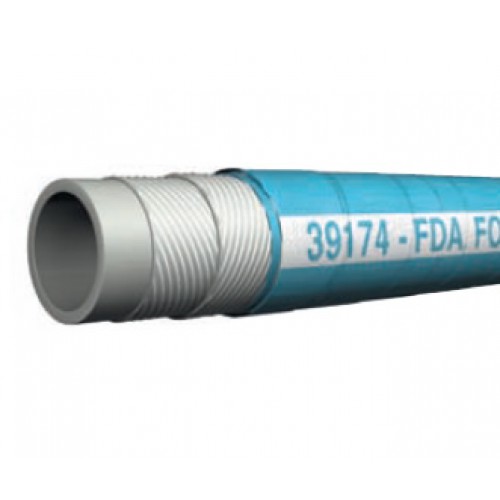

Food Grade Hot water & Steam Hose (19mm I.D.)
Model: HRD3917419
Designed for handling hot water, steam, foodstuffs, beverages and dairy products in dairies, creameries, breweries and abattoirs.
Manufactured using FDA approved rubber compounds.
Construction
Cover: Cloth Finish Blue EPDM Rubber
Liner: White FDA Approved EPDM Rubber
Applications
Multi-sector applications for hot water wash down, drinking water & steam transfer
Temp. Range
Suitable for use with water: -20°C to +100°C
For steam the maximum temperature is 165°C
Fittings
Can be supplied with cut ends or a choice of stainless steel fittings
| Type | |
| Rewind Method | N/A |
| Hose | |
| I.D. (Inside Diameter) | 19mm (3/4") |
| Length (m) | Various |
| Pressure (BAR) | 7 |
| Lining | White FDA Approved EPDM Rubber |
| Cover | Cloth Finish Blue EPDM Rubber |
| Application | |
| Media | Food Product, Hot Water, Stea m |
| Construction | Mandril |
| Max. Working Temp. | Water: 100°C Stea m: 165°C |
