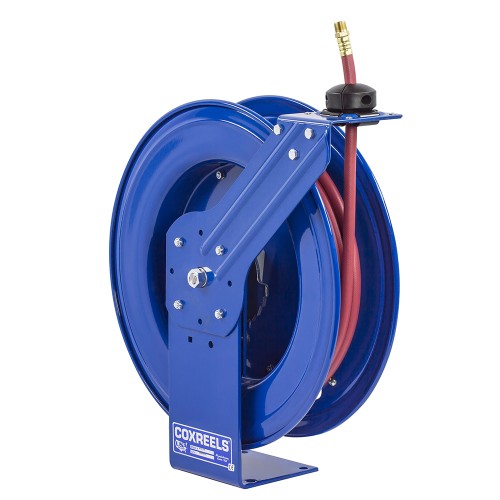

SH-N-4100-BGX Spring rewind hose reel with 31m of 12mm Air or Water hose

    PDF generate
  • Series: SH Series
  • Model: SH-N-4100-BGX


In order to maintain the best possible pricing and accurate lead times we offer all of our customers tailored made quotations.

Once we received your request we aim to get back to you asap

The Super Hub SH Series is the big brother to the P Series. A heavy duty spring retractable reel that uses a spring to retract the hose keeping it off the floor and reducing expensive hose damage and increasing safety.

Remember - s increase safety and convenience


Why purchase this reel?

  • The Super Hub - The design supports the axle in three places rather than to making it extra strong and resistant to vibration.
  • Manufactured in the USA - Built to last with a solid steel construction and specially treated extra hard power coat finish.
  • Solid ¼” steel base & 1” solid steel axle - Designed not to twist and distort even under heavy use.
  • Enclosed drive spring - On some reels moisture can creep in and cause problems with the internal drive spring. All the P Series cassettes are sealed to stop this problem.
  • Attention to detail - The reel is manufactured with processes such as rolled edges & ribbed discs for maximum strength and tuning the spring cartridge to match the hose length all add up to a high quality, professional .

"This is backed by a 2 year manufacturer's limited warranty.”


Recommended Applications

  • Service vans and maintenance vehicles
  • Construction using air tools and pneumatic compressors.
  • Manufacturing facilities
  • Commercial fleet service centers

Extras

This reel comes complete with professional quality rubber hose and solid rubber bumper stop.

Don’t start each job untangling hose, get the job done.

Type
Rewind Method Spring
Hose
I.D. (Inside Diameter) 12mm (1/2")
Length (m) 31 m
Pressure (BAR) 21
Type of Hose Call for Details
Supplied with Hose Yes
No. of Hoses Single Hose
Application
Media Compressed Air, Cold Water
Construction Steel
Weight 37
Dimensions (mm) See Downloads Tab
Max. Working Temp. 65°C
Swivel
Seals Nitrile
Material Solid Brass
Connection
Inlet 1/2" BSPT
Outlet 1/2" BSPT
