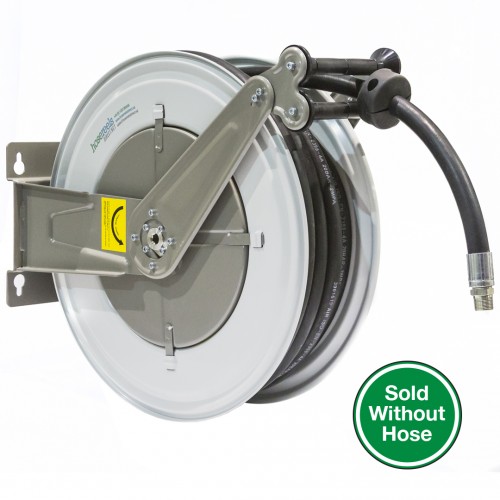

ME-070-1505-400 Jet wash hose reel F555 For 12mm I.D. hose | Sold without hose

    PDF generate
  • Series: F555 Series
  • Model: ME-070-1505-400


In order to maintain the best possible pricing and accurate lead times we offer all of our customers tailored made quotations.

Once we received your request we aim to get back to you asap

The large capacity pressure wash F555 Series heavy duty auto rewind reel uses a spring to retract the hose keeping it off the floor and stopping potential damage and tripping hazards.

Increase safety and convenience


Why purchase this reel?

  • Manufactured in Europe - Solid steel frame is designed and built to last and each component is individually power coated with an extra finish for maximum durability.
  • Designed specifically for high pressure hot water (150°C) - The swivel is engineered for 304 Stainless steel for maximum heat resistance and features Viton seals.
  • Solid ¼” steel base & dual pedestal - Designed with ridges to minimise twisting and distortion even under heavy use.
  • Enclosed drive spring - On some reels moisture can creep in and cause problems with the internal drive spring. All the ME Series cassettes are sealed to stop this problem.
  • Great build quality - Details taken in the manufacturing with processes such as a ‘special’ finish on the spring and dual supports both sides of the drum all add up to a high quality, dependable hose reel.

"This is backed by a 2 year manufacturer's limited warranty.”


Recommended Applications

  • Commercial vehicle wash down - hose stored on reels are less prone to being run over and vehicles can be washed quickly and efficiently.
  • Equipment and machinery wash down - This reel will help keep your equipment in the best condition possible
  • Service vans and specialist mobile cleaning vehicles


Popular Mounting Positions

This hose reel can mounted on the wall, floor or ceiling




Extras

This reel is sold without hose but includes a solid rubber bumper stop.

Don’t start each job untangling hose, get the job done.

Type
Rewind Method Spring
Hose
I.D. (Inside Diameter) 12mm (1/2")
Length (m) 30 m
Pressure (BAR) 200
Type of Hose Call for Details
Supplied with Hose No
No. of Hoses Single Hose
Application
Media Hot Water
Construction Steel
Weight Call for Details
Dimensions (mm) See Downloads Tab
Max. Working Temp. 150°C
Swivel
Seals Viton
Material 304 Stainless Steel
Connection
Inlet m1/2" BSPP
Outlet m1/2" BSPP
