ME-070-1304-318 Pressure wash hose reel with 18m of 10mm I.D. hose

    PDF generate
  • Series: F460 Series
  • Model: ME-070-1304-318


In order to maintain the best possible pricing and accurate lead times we offer all of our customers tailored made quotations.

Once we received your request we aim to get back to you asap

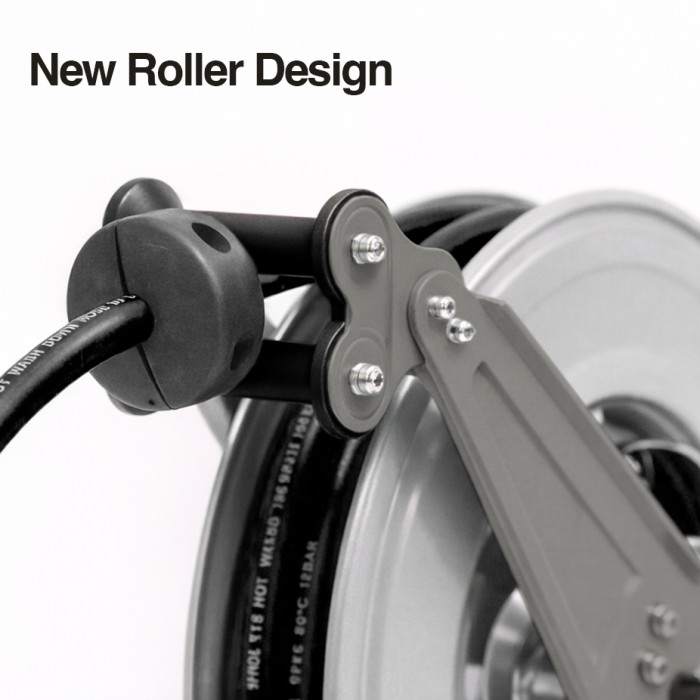

The pressure wash F460 Series heavy duty auto rewind reel uses a spring to retract the hose keeping it off the floor and stopping potential damage and tripping hazards.

Increase safety and convenience


Why purchase this reel?

  • Manufactured in Europe - Solid steel frame is designed and built to last and each component is individually powder coated with an extra finish for maximum durability.
  • Designed specifically for high pressure hot water (150°C) - The swivel is engineered for 304 Stainless steel for maximum heat resistance and features Viton seals.
  • Solid ¼” steel base & dual pedestal - Designed with ridges to minimise twisting and distortion even under heavy use.
  • Enclosed drive spring - On some reels moisture can creep in and cause problems with the internal drive spring. All the ME Series cassettes are sealed to stop this problem.
  • Great build quality - Details taken in the manufacturing with processes such as a ‘special’ finish on the spring and dual supports both sides of the drum all add up to a high quality, dependable hose reel.

"This is backed by a 2 year manufacturer's limited warranty.”


Recommended Applications

  • Commercial jet wash vehicle wash down - hose stored on reels are less prone to being run over and vehicles can be washed quickly and efficiently.
  • Equipment and machinery wash down - This reel will help keep your equipment in the best condition possible
  • Service vans and specialist mobile cleaning vehicles


Popular Mounting Positions

This hose reel can mounted on the wall, floor or ceiling




Extras

This reel comes complete with professional quality 1SC high pressure hose and solid rubber bumper stop.

Don’t start each job untangling hose, get the job done.

Type
Rewind Method Spring
Hose
I.D. (Inside Diameter) 10mm (3/8")
Length (m) 18 m
Pressure (BAR) 200
Type of Hose 1wire braided jet wash hose
Supplied with Hose Yes
No. of Hoses Single Hose
Application
Media Jet Wash Machines
Construction Steel
Weight 23kg
Dimensions (mm) See Documents Tab
Max. Working Temp. 150°C
Swivel
Seals Viton
Material 304 Stainless Steel
Connection
Inlet m3/8" BSPP
Outlet f3/8" BSPP
