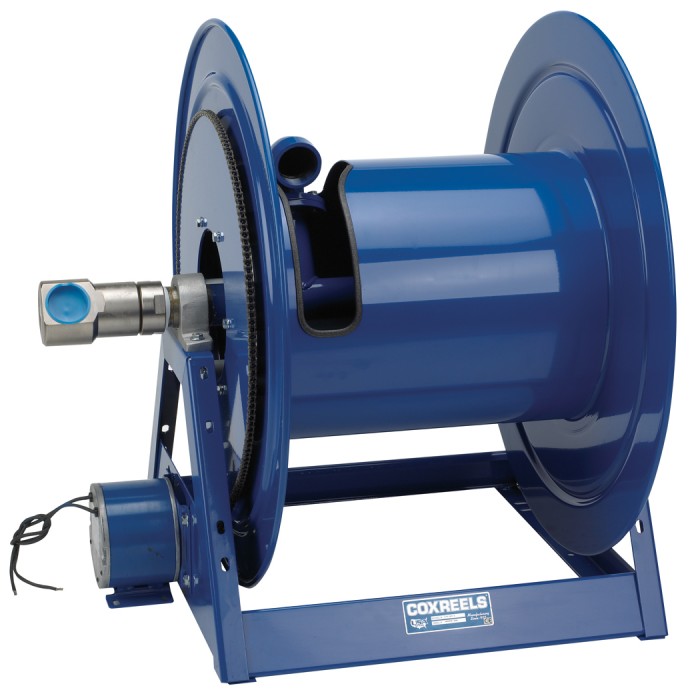

1195-1332 Electric Motor Rewind for 30m of 38mm for Air, Water, Oil & Fuel hose
- Series: 1195 Series
- Model: 1195-1332-ED-XP*
Available Options
In order to maintain the best possible pricing and accurate lead times we offer all of our customers tailored made quotations.
Once we received your request we aim to get back to you asap
Large frame industrial duty reel with electric motor rewind 1195 Series of motorised hose reels, like the 1125 Series, are an industry preferred design built with a larger chassis for larger hose capacities and hose diameters.
Increase safety and convenience
Why purchase this reel?
- Manufactured in the USA - The most solid construction for its class of reel.
- All welded steel "A" frame construction for superior reel structure.
- Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
- Adjustable tension brake to prevent "free-wheeling" during operation.
"This is backed by a 2 year manufacturer's limited warranty.”
Recommended Applications
- Most low pressure fluid and gas applications requiring a heavy duty hose reel with long lengths of large bore hose.
- Suitable for fuel and chemical fluid transfer.
- Ideal for high volume delivery on construction sites and mining operations.
Extras
This reel is sold without hose - for a hose quotation please contact us.
Don’t start each job untangling hose, get the job done.
| Type | |
| Rewind Method | Motor (Electric) |
| Hose | |
| I.D. (Inside Diameter) | 38mm (1.5") |
| Length (m) | 30 m |
| Pressure (BAR) | 41 |
| Type of Hose | Call for Details |
| Supplied with Hose | No |
| No. of Hoses | Single Hose |
| Application | |
| Media | Compressed Air, Cold/Hot Water, Oil, Diesel |
| Construction | Steel |
| Weight | 67 |
| Dimensions (mm) | A 394 x B 343 x C 813 x D 485 x E Crank 610 x E Elec. 610 x E Air 610 x F 650 x G Crank845 |
| Max. Working Temp. | 99°C |
| Swivel | |
| Seals | Viton |
| Material | Nickle Plated |
| Connection | |
| Inlet | 2" |
| Outlet | 2" |
